Why the Towers Fell: The Engineering Record

On the morning of September 11, 2001, two hijacked Boeing 767 airliners struck the twin towers of the World Trade Center. The South Tower (WTC 2) collapsed 56 minutes after it was hit; the North Tower (WTC 1) collapsed after 102 minutes (NIST FAQ, Q2). A total of 2,735 people died in the attacks on the two towers (NIST FAQ, Q3).

This explainer addresses one question: why did the buildings fall down? It is written for readers who have encountered conflicting claims and want to know what the documented engineering record actually says — including what that record does not say.

Who investigated what

A common point of confusion is who produced which findings. There were three distinct official efforts, with different mandates:

• The FEMA Building Performance Assessment Team (2001–2002). Within three weeks of the collapse, FEMA and the American Society of Civil Engineers assembled a team of mostly volunteer engineers to conduct a preliminary study. Its report, FEMA 403 ("World Trade Center Building Performance Study"), appeared in May 2002. It was explicitly preliminary — the team had limited access to documents, evidence, and funding (FEMA 403, 2002).
• The NIST investigation (2002–2005). Congress directed the National Institute of Standards and Technology (NIST) to conduct the in-depth technical investigation of why and how the towers collapsed. Launched on August 21, 2002, it was the first investigation carried out under the National Construction Safety Team Act. The draft report appeared in June 2005; the final report, NIST NCSTAR 1 and its supporting volumes, was issued on October 26, 2005 (NIST FAQ, Q7).
• The 9/11 Commission (2002–2004). The Commission investigated the attacks themselves — the hijackers, intelligence failures, and the emergency response. It did not conduct engineering analysis of the collapses. Its account of the morning's timeline (Chapter 9 of its report) is a valuable source for when events occurred, but the engineering record is NIST's.

The distinction matters because criticisms are sometimes leveled at "the official story" as if it were a single document. It is not. FEMA's early hypotheses were later revised by NIST on the basis of much more evidence — an example of the scientific process working as intended, which we discuss in Chapter 7.

What the NIST investigation actually consisted of

The NIST investigation was not a small effort. Roughly 200 technical experts — about 85 NIST staff and 125 from private practice and academia — reviewed tens of thousands of documents, interviewed more than 1,000 people, and analyzed about 7,000 segments of video and 7,000 photographs. NIST recovered and cataloged 236 pieces of structural steel from the wreckage, including 90 exterior column panels and 55 core columns, and tested them for strength, chemistry, and signs of fire exposure (NIST FAQ, Q28; Banovic et al., 2007).

NIST built three linked computer models: a model of the aircraft impact (with about two million elements, simulating a fraction of a second at microsecond time steps), a fire model using NIST's Fire Dynamics Simulator (a validated computational tool used in fire forensics), and a structural model of each tower's response. The output of each fed the next (Banovic et al., 2007). The final report series runs to roughly 10,000 pages (approximate; NIST describes the NCSTAR series as comprising over 10,000 pages across more than 40 companion reports).

NIST also investigated WTC 7, a separate 47-story building that collapsed late on the afternoon of 9/11. That was a separate report, issued in November 2008, describing a different collapse mechanism. It is touched on only briefly here (Chapter 7).

What is known, and what is inferred

Honesty about certainty is essential here. Some facts are directly observed: the impact times, the visible damage to the exterior walls, the inward bowing of columns photographed before collapse, the molten metal flowing from WTC 2, the times when collapse initiated. Other parts of the story — the exact number of severed core columns inside each tower, the precise temperatures at each location, the exact sequence of connection failures — are inferred from computer models calibrated against photographs, videos, recovered steel, and survivor accounts. NIST is explicit about this: it analyzed "base," "less severe," and "more severe" damage cases, and reported that the more severe case agreed most closely with the visual and physical evidence (NIST FAQ, Q15).

Where this explainer reports a number, it identifies the source. Where a number is uncertain or approximate, it says so.

A final note on tone: the questions skeptics raise about the collapses are legitimate questions. Some of them ("jet fuel can't melt steel") rest on true premises. The job of this explainer is not to mock anyone but to lay out what the physical evidence and the engineering analysis actually show, so that readers can judge for themselves.

To understand why the towers fell, you first have to understand what was unusual about how they stood up. The twin towers were not conventional steel-frame skyscrapers. They were among the first and purest expressions of a design called tube-frame construction — and that design's strengths and weaknesses both mattered on September 11.

Below ground: enclosure, foundations and anchors

The slurry wall enclosed the excavation. Temporary tiebacks supported that wall while crews worked below ground; foundations beneath the towers carried the column loads toward bedrock. These systems had different roles. The Foundations animation begins with tiebacks visible around the enclosure, moves continuously into one of those anchor banks, and follows its head, free tendon and length bonded into rock. The camera then returns to the same anchored enclosure before revealing the core and exterior supports below ground and the basement cross bracing. The tieback positions, count and inclination are illustrative, rather than surveyed anchor locations (Tamaro, The Bridge 32(1), 2002, pp. 12–13; original drawings cataloged in the sublevel model).

In the model: Follow the enclosure, tiebacks and foundations · Inspect the tieback beat.

The tube-frame concept

In a traditional steel skyscraper, a dense grid of interior columns carries the building's weight and bracing against wind. The towers instead concentrated nearly all of their structure at the perimeter and the core, leaving the floor space between them open. Each tower's exterior wall was a "tube" made of 59 closely spaced steel columns per face, each column a welded box roughly 14 inches square, spaced only 40 inches apart (Banovic et al., 2007; NIST NCSTAR 1). From a distance, this dense lattice of columns is what gave the towers their distinctive, almost solid-looking striped appearance.

The exterior columns were not erected one at a time. They arrived on site as prefabricated panels: three columns joined together, each three stories tall, connected by deep horizontal plates called spandrels at each floor. Once bolted together, these panels formed a stiff, continuous wall that carried all of the wind load and a share of the building's weight (Banovic et al., 2007). The steel was unusually sophisticated for its era: the plans called for 14 different strength grades of steel, from a minimum yield strength of 36 ksi up to 100 ksi at the corners, with each panel tailored to its exact location. ("Yield strength" is the stress at which steel begins to deform permanently rather than springing back; 1 ksi is 1,000 pounds per square inch.)

In the center of each tower, a core of 47 columns carried approximately half of the gravity load — the weight of the building and its contents — along with the elevators and stairwells (Banovic et al., 2007). Before the aircraft impacts, the core columns were loaded to roughly 50 percent of their capacity, while the exterior columns were loaded to only about 20 percent of theirs (Banovic et al., 2007). This matters: the exterior walls had substantial reserve strength.

In the model: Watch neighboring wall panels meet.

The base: column trees and the lobby transition

A building with columns spaced every 40 inches poses an obvious architectural challenge at street level: how do thousands of commuters, workers, and delivery vehicles get in? If the 40-inch column spacing had continued to the sidewalk, the ground floor would have been an impenetrable cage.

To solve this, the engineers and architect Minoru Yamasaki created massive branching steel weldments known as column trees (often called tridents). Between the 4th and 7th floors, each group of three perimeter columns merged into a single heavy structural "trunk." This tripled the opening width at the plaza level from 3 feet 4 inches to 10 feet, forming the soaring, neo-Gothic pointed arches that framed the tower lobbies and arcade (NIST NCSTAR 1-1). Each trident was an enormous fabrication weighing up to 50 tons, made of steel plate up to 5 inches thick. Below the plaza, these massive columns descended through six subterranean basement levels to rest on heavy steel grillages anchored directly into Manhattan schist bedrock within the slurry-wall "bathtub."

In the model: Trace the branching base and core.

The floors: light, long, and critical

The typical floor system also arrived in prefabricated sections. A roughly 20-foot-wide module combined trusses, transverse bridging and metal deck. It contained two interior pairs of trusses and a single truss at each edge; adjacent modules brought their single edge trusses together at a shared seat. Concrete was placed after the assemblies were installed (NIST NCSTAR 1-1, p. 12; NCSTAR 1-3A, p. 11). The animation follows the complete steel span first, adding transverse bridging and metal deck in their assembled positions. The blue steel-and-deck section lowers once onto the fixed core and perimeter supports and remains there as its gold neighbor arrives alongside it. An interior view then holds on their shared perimeter seat: blue and gold bearing angles rest on the fixed wall seat, with the bolts highlighted between the truss ends. Concrete has its own later step: it appears across the installed deck after the camera returns to the full span. A lengthwise section shows the slab above the deck and the truss knuckles embedded in it before the surrounding floor returns. The floor-98 module boundaries explain the system; they are not recovered fabrication marks.

Between core and perimeter stretched the floors, and here the design was at its most innovative — and most vulnerable. Each floor was a concrete slab poured over a corrugated steel deck, supported by a grid of lightweight open-web trusses spanning the roughly 60 feet (long side) or 35 feet (short side) between the core and the exterior wall (NIST NCSTAR 1). A truss is a lattice of small steel members that behaves like a deep beam at a fraction of the weight. The WTC trusses were remarkably light: their top and bottom chords were steel angles only a quarter to three-eighths of an inch thick, and the zig-zag web members between them were single lengths of round bar just three-quarters of an inch in diameter (Banovic et al., 2007).

The floors did two jobs, and the second one is easy to miss. Besides holding up people and furniture, each floor acted as a horizontal diaphragm — a stiff plate in the horizontal plane that tied the core and the exterior walls together. The tall, slender perimeter columns, unbraced between floors, depended on the floors for lateral support, much the way a long ruler is easy to bend in the middle but resists bending when you brace it at intervals. When floors sag or detach, the columns they once braced become longer, more flexible, and far more prone to buckling (Banovic et al., 2007; NIST FAQ, Q18).

In the model: Inspect the floor modules and their connections · Follow the connected structure upward.

Circulation inside the core

Express elevators served sky lobbies at floors 44 and 78, where passengers could transfer to local banks. The model follows an example trip through floor 78 to floor 91 beside the retained shaft layout. The moving trace explains the transfer; it does not represent a particular cab, operating speed or historical journey (NIST NCSTAR 1-7, §2.2.3, pp. 32–34; the original elevator plans are cataloged in the model).

In the model: Follow an express-to-local journey.

Stairs and transfers

Three stair routes also passed through the core. Their positions changed with the building's layout, using flights, landings and transfer corridors. The construction section moves through floors 74–83 and into the modeled B-stair transfer at 76. These are reference routes; their drawn continuity does not establish that they remained passable after impact (NIST NCSTAR 1-7, §2.2.2, pp. 27–31; source stair plans cataloged in the model).

In the model: Look inside the stair routes and transfers · Revisit the routes after impact.

The hat truss and the 360-foot antenna

At the top of each tower, spanning the 107th floor to the roof, sat the hat truss — an interlacing two-story system of steel diagonal trusses connecting the 47 core columns to the perimeter walls (NIST NCSTAR 1-1). The hat truss served two critical purposes:

First, it stiffened the crown of the building, providing a direct mechanism for the core and the perimeter tube to share lateral and vertical loads. During the fires, the hat truss would play a heroic and tragic role, redistributing loads from the weakening core out to the perimeter walls (Banovic et al., 2007).

Second, on the North Tower (WTC 1), the hat truss supported the tower's iconic 360-foot telecommunications antenna. Installed in 1978–1979, the mast weighed approximately 360 tons and rose to 1,727 feet above Manhattan, subjected to immense wind drag and buffeting. The antenna did not sit on the roof slab; it was anchored directly into the heavy steel diagonals of the hat truss, which transferred its weight and overturning moments into core columns 501, 508, 601, and 608 and out to the perimeter. (The South Tower, WTC 2, had no mast; its roof featured the world's highest open-air observation deck.) As discussed in Chapter 5, this rigid connection between the antenna and the core columns would provide one of the most revealing forensic clues of collapse initiation.

In the model: Follow the crown back to the whole structure · Begin The Day with both towers.

Fireproofing: the fragile layer

Steel does not burn, but it weakens with heat (see Chapter 3), so building codes require it to be insulated. The towers used sprayed fire-resistive material (SFRM) — a soft, mineral-fiber or gypsum-based coating sprayed directly onto the steel, like a thick layer of plaster. SFRM works well as insulation, but it is mechanically fragile: it can be scraped, knocked, or blasted off.

The thickness of the SFRM had been a live question throughout the towers' life. The floor trusses were originally specified with a half inch of fireproofing (as applied, it averaged about three-quarters of an inch); in the late 1990s, the Port Authority had been upgrading fireproofing during tenant work, and the fire-affected floors of WTC 1 had been upgraded to about 2½ inches. NIST found no evidence that the fire resistance of the floor system as designed had ever been verified by a standard fire test (NIST FAQ, Q14). In the end, the thickness turned out not to be the decisive issue: on September 11, aircraft debris and dispersed fuel traveling initially over 500 miles per hour simply stripped the fireproofing off columns and trusses across the impact floors, whatever its thickness (NIST FAQ, Q14; Banovic et al., 2007).

Strengths and vulnerabilities, in one view

The design's virtues were real: the towers survived aircraft impacts that severed dozens of columns, because the tube structure redistributed the load around the damage — exactly as its designers intended. The vulnerabilities were equally real, and they were specific:

• The floor trusses were the thinnest, most lightly protected structural members in the building. Small cross-sections heat up fast when their insulation is gone (Banovic et al., 2007).
• The perimeter columns depended on the floors for bracing. Sagging floors both pulled the walls inward and left columns unbraced over multiple stories (Banovic et al., 2007).
• The fireproofing was adhesion-dependent. It only worked if it stayed attached — and a 500-mph debris field was never a condition it had been designed to survive (NIST FAQ, Q14).

None of these made the towers badly designed. They made the towers dependent on a chain of protections — insulation intact, floors connected, columns braced — that the attacks broke in several places at once.

Each tower was struck by a Boeing 767-200ER, a wide-body jetliner weighing well over 100 tons with roughly 10,000 gallons of jet fuel aboard (approximate; NIST NCSTAR 1-2). The two impacts were different in ways that mattered enormously for how long each tower survived.

In the model: Locate both towers and the selected impact region · Inspect exterior and core damage.

WTC 1 (North Tower): American Airlines Flight 11, 8:46 a.m.

At 8:46:30 a.m., Flight 11 hit the north face of WTC 1 at roughly 443 mph (approximate; NIST NCSTAR 1-2), cutting through floors 93 to 99. The impact was nearly centered on the face and nearly level (9/11 Commission Report, Ch. 9; NIST NCSTAR 1). NIST's metallurgical summary records that the impact damaged or severed 38 of the 59 exterior columns on the north wall, and — based on the aircraft impact analysis — 9 of the 47 core columns inside the building (Banovic et al., 2007).

Because the plane hit squarely, debris plowed through the core. Evidence indicates all three of the building's stairwells became impassable from the 92nd floor up, trapping everyone above the impact zone (9/11 Commission Report, Ch. 9).

The surviving frame redistributed loads immediately after impact. The hat truss at the crown resisted downward movement of the damaged north wall and helped transfer load to other walls and the core; adjacent columns, spandrels and floors also participated. The North Tower's Impact animation visits that retained hat-truss geometry before returning to the damaged region. This response helped the structure remain standing and is distinct from later redistribution caused by heating and core shortening. NIST NCSTAR 1, §§6.14.2 and 6.14.6, pp. 144 and 150.

In the model: Inspect the North Tower core routes.

WTC 2 (South Tower): United Airlines Flight 175, 9:03 a.m.

At 9:03 a.m. (NIST's video analysis gives 9:02:59; the 9/11 Commission gives 9:03:11), Flight 175 hit the south face of WTC 2 at roughly 542 mph — substantially faster than Flight 11, and therefore carrying much more kinetic energy (approximate; NIST NCSTAR 1-2; 9/11 Commission Report, Ch. 9; Banovic et al., 2007). The plane struck lower — floors 77 to 85 — and it was banked and angled, hitting obliquely toward the southeast corner rather than head-on (9/11 Commission Report, Ch. 9; NIST NCSTAR 1).

This geometry had two consequences. First, the impact damaged 32 of the 59 exterior columns on the south wall and an estimated 11 of the 47 core columns — including, critically, a corner column of the core. The core damage was asymmetric, concentrated toward the southeast. Immediately after impact, the southeast corner of the core dropped by about 15 centimeters, and the core above the impact zone was left leaning toward that corner, supported by the south and east floors and walls (Banovic et al., 2007). Second, because the plane struck obliquely, one stairwell (Stairwell A) initially remained passable from at least the 91st floor down — a narrow escape route that some occupants above the impact zone were able to use (9/11 Commission Report, Ch. 9).

In the model: Inspect the South Tower core routes.

Designed routes and usable access

The access animation places the reference stair and shaft geometry beside the selected tower's damage. It does not simulate debris, doors, individual journeys or a clear walking path. Read the tower-specific accounts above to distinguish the designed route from the evidence for passage.

Four things the impacts did

Beyond the immediate human tragedy, each impact inflicted four kinds of damage that set the stage for collapse:

1. Severed columns, redistributed loads. With dozens of exterior columns cut and core columns destroyed or damaged, the loads they carried had to go somewhere. The tube structure redistributed them through the spandrels to adjacent columns and through the hat truss between core and perimeter. The exterior columns' large reserve capacity (they had been loaded to only about 20 percent of capacity) absorbed much of this shift (Banovic et al., 2007). The towers standing after impact was not luck; it was the structure doing its job. But the margins were now thinner, and some columns were carrying loads near or at their capacity (Bazant & Verdure, 2007).

1. Stripped fireproofing. The debris field and dispersed fuel, moving initially at over 500 mph, blasted the sprayed fireproofing off columns and floor trusses across the impact floors (NIST FAQ, Q14; Banovic et al., 2007). This is the single most consequential form of damage for what followed: NIST concluded that, had the insulation not been widely dislodged, the towers likely would not have collapsed under the combined effects of impact and fire (Banovic et al., 2007).

1. Dispersed jet fuel and ignition. Each aircraft carried roughly 10,000 gallons of jet fuel (approximate; NIST NCSTAR 1-2). NIST estimated that about 15 percent of the fuel burned in the fireball outside the building and another 15 percent burned inside almost immediately; the rest was dispersed across multiple floors and consumed within the first minutes, igniting the office contents over a huge area (Banovic et al., 2007; NIST NCSTAR 1-5). The fireball itself blew out many windows, which then admitted oxygen to the fires (Banovic et al., 2007). The important point, often misunderstood: the jet fuel was the match, not the fuel supply. After the first minutes, what burned for the following hour or more was the ordinary combustible content of several acres of office space per tower — furniture, paper, carpet, partitions, computers (NIST NCSTAR 1-5; NIST FAQ, Q23).

1. Destroyed escape routes and firefighting systems. The impacts severed the risers feeding the sprinkler systems, so sprinklers were not operating on the principal fire floors. Even had they worked, they were designed to suppress fires covering up to about 1,500 square feet; the actual fires quickly spread over most of the roughly 40,000 square feet of each affected floor, on several floors at once (NIST FAQ, Q23). In WTC 1, all stairwells through the impact zone were destroyed; in WTC 2, one survived initially (9/11 Commission Report, Ch. 9).

What the impacts did not do

Neither tower was close to collapse immediately after impact. Both stood while evacuation proceeded — WTC 1 for 102 minutes, WTC 2 for 56. The impacts started a process; they did not finish it. What finished it was fire acting on a structure that had lost its insulation and part of its skeleton (NIST FAQ, Q11).

One of the most persistent misunderstandings about the collapse of the towers is the belief that for the buildings to fall, the fire had to melt the steel. It did not. Steel melts at roughly 1,500 °C (2,700 °F). Typical open-air hydrocarbon and building-content fires peak between 800 °C and 1,000 °C (1,470 °F to 1,830 °F).

NIST never concluded that structural steel melted, and no melting was required. Steel loses its structural integrity long before it turns liquid (Banovic et al., 2007; NIST NCSTAR 1).

In the model: Move through the fire-affected region.

The animation's amber bands identify a floor region for the explanation. Their glow is not a temperature field, fire-spread calculation or insulation-loss map. Use the section's Deep dive to compare the fire maps and their source times before following the floor response.

How heat weakens steel

Like most metals, structural steel undergoes a predictable loss of strength and stiffness as its temperature rises:

• At 400 °C (750 °F): Steel begins to lose measurable yield strength, though it retains roughly 80 percent of its capacity.
• At 600 °C (1,110 °F): Structural steel loses roughly 50 percent of its room-temperature yield strength and approximately half of its elastic stiffness (modulus of elasticity) (Banovic et al., 2007; NIST NCSTAR 1-3).
• At 800 °C (1,470 °F): Steel retains barely 10 percent of its room-temperature capacity. Under heavy compression, it can no longer support meaningful load.

Compounding this loss is a phenomenon known as high-temperature creep: under sustained compressive or tensile load, heated steel continues to stretch and deform permanently over time, even at stress levels well below its instantaneous yield point (Banovic et al., 2007). A column or truss carrying building weight at 600 °C will steadily deform under that load until it buckles.

Gas temperature vs. steel temperature

A common analytical error is confusing gas temperature with steel temperature. NIST’s fire reconstructions using the Fire Dynamics Simulator calculated upper-layer gas temperatures reaching around 1,000 °C in parts of the fire floors (NIST NCSTAR 1-5). But air heats quickly; structural steel has high thermal mass and heats much more slowly, depending on its thickness and insulation.

Here, the design of the towers created a stark division between components:

1. Heavy columns: The massive steel box columns of the core and perimeter, with steel plates up to several inches thick, absorbed heat slowly. Where fireproofing was dislodged, they heated up over the course of an hour, but where fireproofing remained, their internal steel temperatures remained far lower.
2. Light floor trusses: The floor trusses were made of slender steel angles only 1/4 to 3/8-inch thick and round bars only 3/4-inch in diameter. These members had a very high surface-area-to-mass ratio. When the blast of the aircraft impacts stripped their sprayed fireproofing, these lightweight members heated rapidly, reaching the surrounding gas temperature in tens of minutes (Banovic et al., 2007).

Why fireproofing was the decisive factor

This contrast explains why NIST concluded that the loss of fireproofing was the single most consequential form of damage inflicted by the aircraft. Had the sprayed fire-resistive material remained in place, the steel would have heated slowly enough that the fires would likely have burned through their available combustible fuel and begun to decay before critical structural temperatures were reached.

Instead, on the impact floors, uninsulated floor trusses and column faces were directly exposed to intense flames fed by hundreds of tons of office furniture, paper, carpet, and computers.

Thermal expansion meets gravity: the beginning of sag

Heating changes both a floor's dimensions and its ability to carry load. In NIST's analysis of a composite truss-and-slab section, thermal expansion initially pushed the columns outward. With further heating and greater sag, the floor pulled the columns inward. This is a calculated response under the analysis's loading, restraint and temperature conditions, not a measured outward-motion sequence at an aircraft entry opening. NIST NCSTAR 1, §6.6.4, p. 98.

The distinction matters: outward pressure from a heated floor and later inward pull from a sagging floor can occur at different stages of its response. The aircraft impact and its debris also damaged the exterior, through a separate process. In the animation, the Fire & heat section explains expansion while retaining the impact geometry; Sagging and Bowing then keep the floor, core support and perimeter connection visible together. The display does not add an unsupported outward displacement to the tower model.

Read NIST’s fire reconstruction (NCSTAR 1-5).

Of all the evidence assembled by NIST, none was more critical to unlocking the collapse mechanism than photographs taken from police helicopters and ground observers in the final minutes before each building fell. Those photographs documented something that defied common intuition: the exterior walls were bowing inward by several feet.

To understand why this happened, one must understand how a heated floor stops acting like a beam and starts acting like a suspension cable.

In the model: Follow the floor and its supports.

From flexure to catenary: how sagging pulls walls inward

Under normal conditions, a floor truss acts in flexure (bending). It behaves as a rigid horizontal beam: gravity pushes down on the floor slab, and the truss transfers that vertical weight straight down onto its support seats at the core and the exterior wall. It exerts virtually no horizontal pull on the walls.

As fires raged on the impact floors and temperatures rose past 500 °C, the lightweight steel trusses lost their stiffness. Under the heavy dead weight of the 4-inch concrete slab, the floor assemblies began to sag severely across their 60-foot spans.

Once a beam sags deeply, its fundamental physics changes:

1. Catenary action (membrane tension): Instead of behaving like a rigid beam, the sagging floor behaves like a hanging suspension bridge cable. To support the weight suspended in its middle, the sagged floor develops immense tensile forces along its length.
2. Inward horizontal pull: Because the ends of the trusses remained bolted and welded to the exterior wall spandrels and core columns, this cable tension exerted a powerful inward horizontal force on the exterior columns, pulling the walls toward the center of the building (NIST NCSTAR 1; NIST FAQ, Q17).

Rather than pushing outward or detaching cleanly, the sagging floors acted like horizontal winches, dragging the slender exterior columns inward.

In the model: Stay with the wall as it bows.

The photographic record: measuring the bowing

This inward pull was not a theoretical model output; it was directly photographed and measured on the actual buildings:

• WTC 1 (North Tower): At 10:23 a.m. — just five minutes before collapse — NYPD aviation photos captured dramatic inward bowing of the south face across floors 94 to 100. NIST’s photogrammetric analysis determined that the exterior columns had been pulled inward by a maximum of 55 ± 6 inches — more than four and a half feet — at the 97th floor (NCSTAR 1, p. 33, Fig. 2-12; Table 6-2). Remarkably, this occurred on the south face, directly opposite the north face where the airplane had entered.
• WTC 2 (South Tower): At 9:21 a.m. — 38 minutes before collapse — photographs documented inward bowing across floors 78 to 83 on the east face, reaching 7 to 9 inches at floor 80 (NCSTAR 1, Table 6-2). In the remaining 37 minutes, as intense fires swept across the east and south sides, this inward displacement deepened.

Why inward bowing was fatal: the P-Delta effect

For a tall, slender column carrying millions of pounds of building weight, inward bowing is catastrophic due to a structural instability known as the P-Delta ($P\text{-}\Delta$) effect:

1. Eccentricity: In a straight, vertical column, compressive weight ($P$) acts directly down the column's central axis. But when a column is bowed inward by several feet ($\Delta$), the downward weight of all the stories above acts at a large horizontal distance from the column's centerline.
2. Amplified bending: This offset creates a massive secondary bending moment ($P \times \Delta$) that forces the column to bend even further inward, accelerating instability.
3. Loss of lateral bracing: At the same time, because the sagging floors had softened and deformed, they could no longer serve their vital second job as stiff horizontal diaphragms. The perimeter columns lost their story-by-story bracing. In structural engineering, a column's buckling resistance is inversely proportional to the square of its unbraced length ($L^2$). Columns that had been braced every 12 feet suddenly became unbraced over two or three stories (24 to 36 feet), slashing their buckling capacity by up to 75 to 90 percent (NIST FAQ, Q18).

Heated by fire, bowed inward by sagging floors, carrying redistributed loads from severed neighbors, and stripped of lateral bracing, the perimeter columns were pushed to the absolute brink of failure.

Read NIST’s final investigation report.

Collapse initiation is the pivotal moment when a damaged but standing skyscraper crosses the threshold into runaway global failure. For nearly an hour in the South Tower, and an hour and forty minutes in the North Tower, the buildings absorbed catastrophic damage and stood.

Then, within seconds, the internal balance of forces collapsed. The initiation sequences for both towers reveal how the interaction of severed columns, fire softening, floor sagging, and the hat truss produced catastrophic column instability.

In the model: Inspect the beginning of upper-section movement.

The animated account stops at a chosen 2° of early movement. This endpoint is an illustration for inspection, not a measured video frame or a simulation of the subsequent collapse.

WTC 1 (North Tower): Hat-truss load transfer and south wall buckling

In the North Tower, collapse began at 10:28:22 a.m., 102 minutes after impact (NIST NCSTAR 1, Table 6-1).

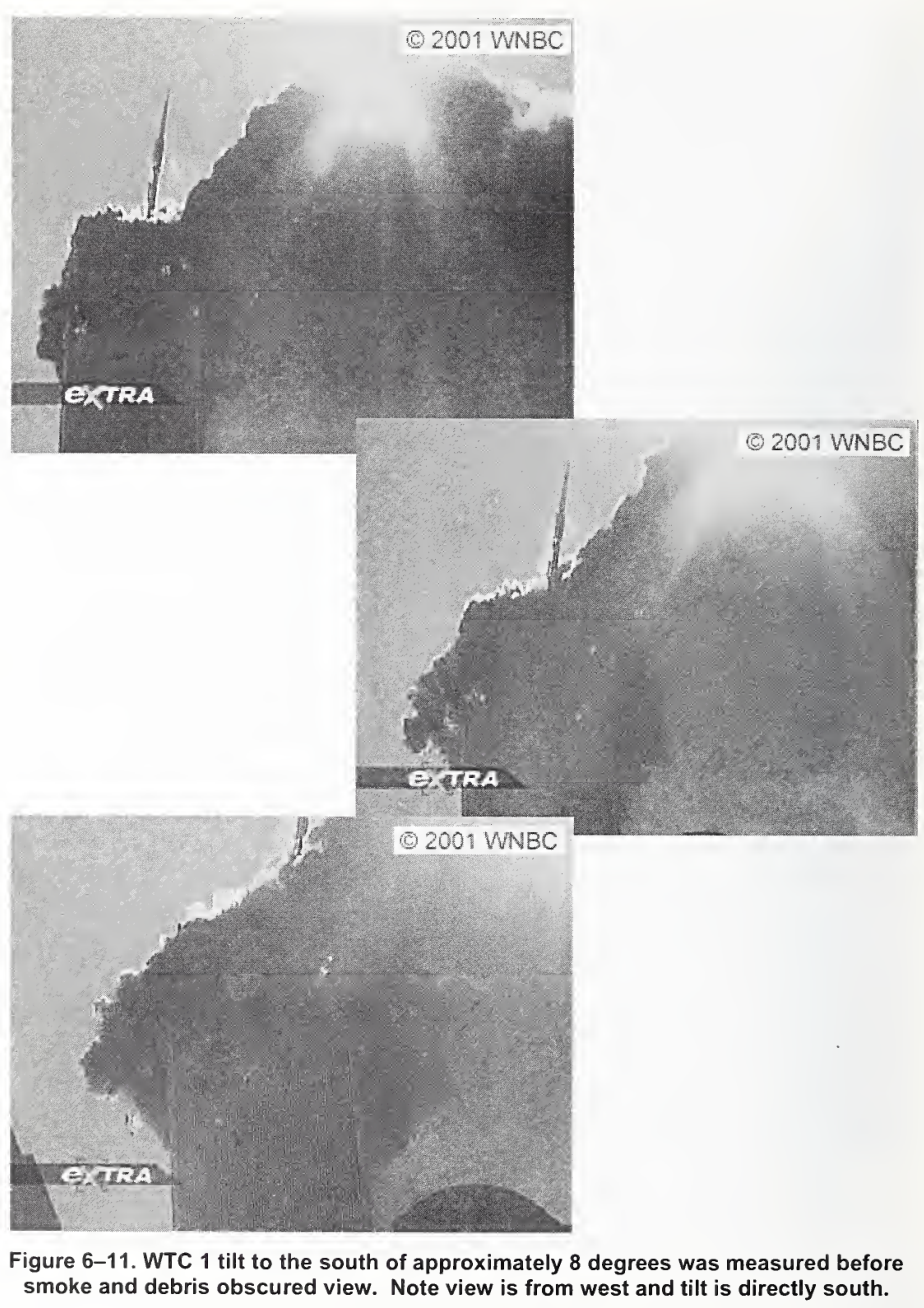

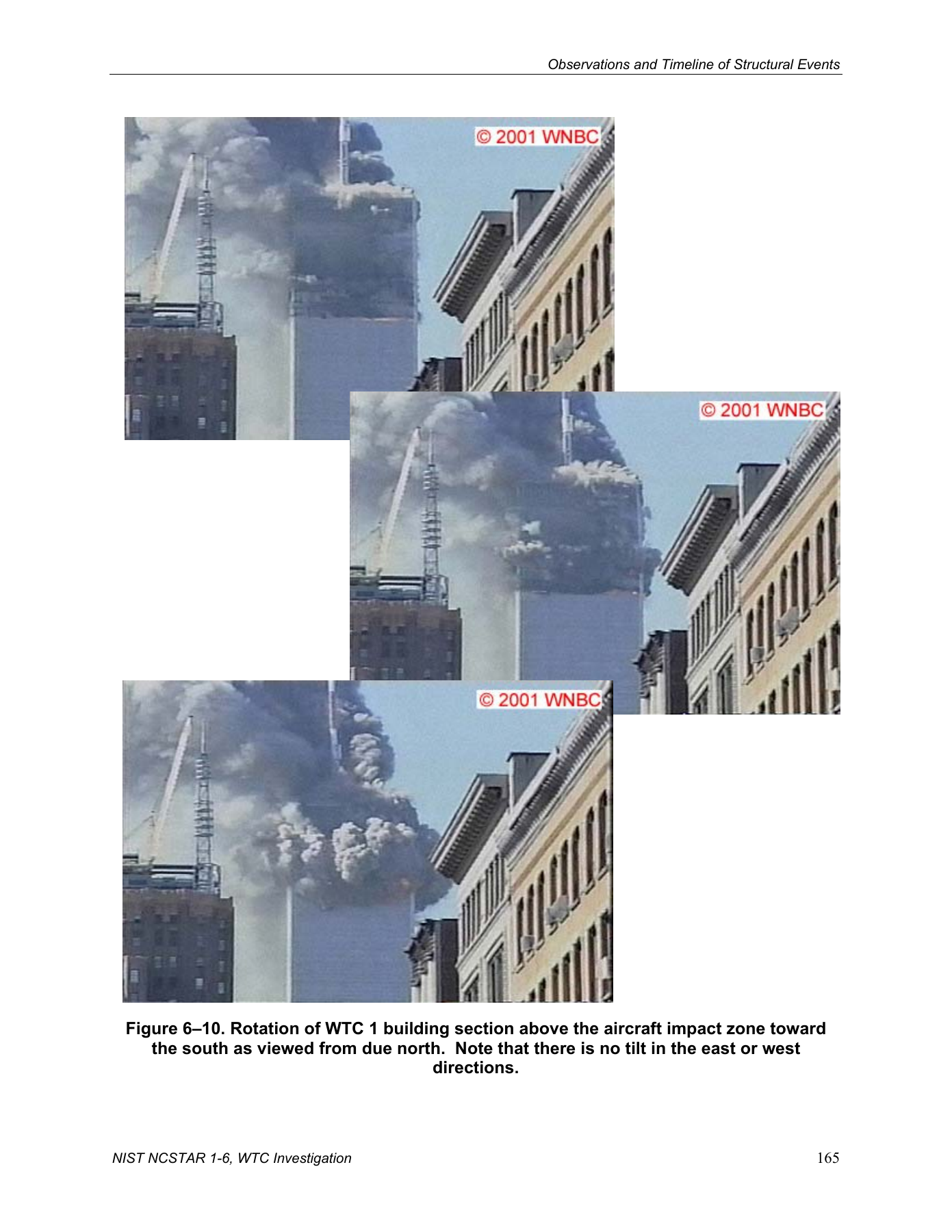

Early television broadcasts filmed from due north gave the visual impression that the 360-foot rooftop telecommunications antenna was "sinking into the roof" before the exterior walls moved, leading some early accounts (such as FEMA 403, McAllister 2002) to speculate that the core had detached and dropped out inside the building.

However, NIST’s comprehensive investigation and multi-angle photogrammetry overturned this single-vantage-point interpretation (NIST NCSTAR 1-6, §6.1, p. 152):

• When records from east and west vantage points were analyzed alongside northern views, investigators confirmed that the antenna was not plunging through the roof; rather, the entire 12-story upper block (Floors 98–110, including the hat truss and antenna) was tilting to the south as a rigid body (NIST NCSTAR 1, pp. 150–151).
• Because cameras north of the tower viewed the 360-foot mast tilting directly away from them, 2D perspective foreshortening made the top of the antenna appear to drop straight downward in the frame.

The true structural mechanism driving collapse initiation was a catastrophic sequence of load redistribution and column instability:

1. Thermal weakening and shortening of the core: Exposed to sustained ~600 °C temperatures on floors where aircraft debris had stripped fireproofing (floors 93–99), the core columns lost yield strength and underwent creep deformation, shortening under load.
2. The hat-truss outrigger effect: The two-story steel hat truss (floors 107 to the roof), designed to tie all 47 core columns to the perimeter tube, resisted this shortening. Acting like an outrigger bridge, it redistributed approximately 20 percent of the core’s gravity load outward to the perimeter walls (north/south wall loads increased by ~10%, east/west by ~25%; NIST NCSTAR 1, p. 150).
3. Catastrophic buckling of the south face: The south perimeter wall was already in severe distress: long-span floors on floors 95–99 had sagged under intense heat, pulling the south perimeter columns inward by up to 55 ± 6 inches at Floor 97 (photographed at 10:23 a.m.). Under severe $P\text{-}\Delta$ eccentricity and the additional gravity load dumped from the hat truss, the bowed south wall columns buckled.
4. Rigid upper-block tilt: Overloaded by the sudden failure of the south wall, instability quickly propagated across the south face and into the adjacent east and west walls. Acting as a rigid block, the entire section above Floor 98 tilted at least 8° to the south and plunged downward into the intact structure below (NIST NCSTAR 1, pp. 150–152).

WTC 2 (South Tower): The asymmetric collapse

In the South Tower, collapse initiated at 9:58:59 a.m., just 56 minutes after impact. Why did WTC 2 collapse nearly 46 minutes faster than WTC 1, even though it was struck second?

The answer lies in the impact geometry and gravity demands:

• Heavier upper block: WTC 2 was struck between floors 77 and 85, leaving an upper section of roughly 30 stories resting on the damaged floors — nearly two and a half times the mass of the 12-story block above WTC 1's impact zone.
• Higher impact velocity: Flight 175 struck at 542 mph (compared to 443 mph for Flight 11), carrying approximately 50 percent more kinetic energy.
• Asymmetric core damage: The aircraft banked steeply and sliced through the southeast corner of the core, severing critical corner columns. Immediately after impact, the southeast corner of the core settled by 15 centimeters, permanently canting the upper building toward the southeast and transferring heavy dead weight onto the south and east perimeter walls (Banovic et al., 2007).
• East wall failure: Intense office fires swept across the east and south sectors of floors 78 to 83. The sagging east-side floors pulled the east exterior wall inward by 7 to 9 inches (as photographed at 9:21 a.m.) and continued to pull as temperatures climbed.

At 9:58:59 a.m., the softened and bowed east exterior columns buckled under the immense weight of the 30-story upper block. The upper building tilted dramatically 7° to 8° to the east and 3° to 4° to the south, pivoting about the failed corner before plunging downward (NIST NCSTAR 1, pp. 151–152; Fig. 3-5).

Why the "pancake" theory was rejected

Early media reporting and the preliminary 2002 FEMA 403 report suggested that the collapse began when floor connections sheared off, causing the floors to fall like pancakes onto the levels below while leaving the exterior walls standing.

NIST’s comprehensive investigation completely overturned this hypothesis (NIST FAQ, Q17, Q28):

• Had the floor connections failed early, the floors would have dropped cleanly without pulling the exterior walls inward. But photographs unequivocally proved that the walls were bowed inward by up to four and a half feet before collapse began.
• The inward bowing proved that the floor connections held — they stayed attached under extreme heat, transforming the sagging floors into tension cables that dragged the perimeter columns into unstable buckling configurations.

Collapse did not begin with detached floors; it began with the structural buckling of load-bearing columns.

Read NIST’s official investigation FAQ.

Once the columns on the fire floors buckled, the building crossed an irreversible boundary. The top section of each tower — weighing approximately 30,000 tons in WTC 1 and over 70,000 tons in WTC 2 — began to fall downward through the vertical space of the failed stories.

A question often asked is: why couldn't the intact, undamaged structure below stop the falling upper block?

The answer lies in the physics of dynamic impact versus static design capacity.

Static capacity vs. dynamic impact

Buildings are engineered to support static loads — stationary weight pressing quietly downward under gravity. Structural engineers design columns and beams with safety factors, typically sizing them to support 1.5 to 2.5 times the maximum expected static weight.

When an object drops, however, it converts gravitational potential energy into kinetic energy. The force exerted when a falling mass collides with a stationary structure is a dynamic impact force, which can be dozens of times greater than the static weight of the mass resting quietly:

1. The falling hammer: When the 12-story upper block of WTC 1 dropped roughly 12 feet through the collapsed impact zone, it gained enormous downward velocity and momentum.
2. Energy absorption limits: For the underlying columns on the floor below to arrest the fall, they had to absorb all of that kinetic energy through plastic deformation — bending, crumpling, and buckling.

Bažant’s energy threshold: the 8.4× margin

Within days of the collapse, world-renowned mechanics professor Zdeněk Bažant and Yong Zhou published a seminal analysis in the Journal of Engineering Mechanics evaluating this energy balance (Bažant & Zhou, 2002; Bažant & Verdure, 2007).

They calculated the gravitational potential energy released by the upper block dropping through one story height and compared it to the maximum energy that the columns below could absorb before buckling completely. Their finding was definitive:

• The kinetic energy of the falling upper section exceeded the total plastic energy absorption capacity of the underlying columns by a factor of roughly 8.4.
• In other words, the falling mass possessed more than eight times the energy required to destroy the floor below it.

Even if every column on the floor below had been 100 percent intact and undamaged by fire, the dynamic energy of the descending block was overwhelming. Arresting the collapse was physically impossible.

The runaway cascade: "crush-down"

Once the first intact floor below the impact zone failed, the collapse became self-accelerating:

1. Accumulating mass: The newly destroyed floor joined the descending block, increasing the total falling mass.
2. Increasing velocity: Although each impact crushed steel and dissipated energy, the gravitational energy gained by dropping through each successive story was larger than the energy absorbed by crushing the structure. The downward momentum increased.
3. Progressive destruction: This mechanism propagated downward floor by floor in a cascade termed "crush-down" (Bažant & Verdure, 2007). In NIST’s simplified dynamic check, floor connections beneath the falling block were subjected to suddenly applied loads vastly exceeding their ultimate capacity, shearing them off as the collapse front advanced (NIST FAQ, Q18).

What the timing evidence actually reveals

Skeptics often claim the towers fell at "free-fall acceleration," suggesting that explosives must have removed resistance below. But high-speed video and physical evidence tell a very different story (NIST FAQ, Q31):

• Exterior debris in free air (9–11 seconds): NIST estimated that the first fragments of exterior wall panels, blown outward during the collapse, hit the ground in approximately 9 seconds (WTC 2) and 11 seconds (WTC 1). These panels were falling freely through the air outside the building, subject only to gravity and air resistance.
• The internal collapse front was slower: The actual collapse of the building’s interior moved downward at a substantially slower rate than free-fall, resisted by the continuous plastic deformation of thousands of steel beams, columns, and concrete floor slabs.
• The standing core spires (15–25 seconds): Most revealingly, the massive central core columns did not vanish in 10 seconds. In both towers, large vertical remnants of the steel core remained standing for 15 to 25 seconds after initiation, towering above the expanding dust clouds before finally peeling and toppling (NIST FAQ, Q31).

Because dense dust clouds rapidly enveloped the towers within seconds of initiation, video and seismic records cannot determine the exact millisecond when the interior compaction reached bedrock. But the physical mechanics demonstrate a gravity-driven progressive collapse that no steel skyscraper was ever designed to survive.

Read Bažant and Verdure’s paper on progressive collapse mechanics.

Primary sources

NIST NCSTAR 1 — Final Report on the Collapse of the World Trade Center Towers (September 2005). The overview report of NIST's federal building and fire safety investigation, with more than 40 companion volumes (NCSTAR 1-1 through 1-8 series) covering reconstruction of the impacts (1-2), steel analysis (1-3), fire reconstruction (1-5), structural response and probable collapse sequences (1-6), and more.

• Mirror PDF: https://humanfactors101.com/wp-content/uploads/2026/04/Final-report-on-the-collapse-of-the-World-Trade-Center-towers-NIST-2005.pdf
• NIST archive of the full report series: https://www.nist.gov/world-trade-center-investigation (formerly wtc.nist.gov)

NIST, "Questions and Answers about the NIST WTC Towers Investigation" (created September 2011, updated 2021/2022). NIST's official FAQ addressing 34 specific questions about the towers investigation, including the collapse times, the molten metal, thermite, the seismic record, and the rejection of the pancake theory. Cited throughout as "NIST FAQ, Q#."

• https://www.nist.gov/disaster-failure-studies/faqs-nist-wtc-towers-investigation

NIST NCSTAR 1A — Final Report on the Collapse of World Trade Center Building 7 (November 2008). The separate investigation of WTC 7, identifying fire-induced thermal expansion and the buckling of Column 79 as the initiating mechanism, and acknowledging the 2.25-second interval of free-fall acceleration.

• https://www.nist.gov/publications/final-report-collapse-world-trade-center-building-7-federal-building-and-fire-safety-0

9/11 Commission Report, Chapter 9 ("Heroism and Horror," 2004). Timeline of the impacts, the emergency response, and the collapses. Note: the Commission's mandate was the attacks and the response, not structural engineering.

• https://en.wikisource.org/wiki/9/11_Commission_Report/Chapter_9

*Bažant, Z. P., & Zhou, Y. (2002). "Why Did the World Trade Center Collapse? — Simple Analysis." Journal of Engineering Mechanics, 128(1), 2–6. The independent energy analysis, submitted within days of the attacks, showing the kinetic energy of a falling upper block exceeded the underlying story's energy-absorption capacity by roughly an order of magnitude. (Companion discussion: Bažant & Zhou, 2002b, J. Eng. Mech.* 128(3).)

• https://doi.org/10.1061/(ASCE)0733-9399(2002)128:1(2)

*Bažant, Z. P., & Verdure, M. (2007). "Mechanics of Progressive Collapse: Learning from World Trade Center and Building Demolitions." Journal of Engineering Mechanics, 133(3), 308–319.* Refines the 2002 energy analysis into a full model of collapse propagation; contains a concise review of the collapse causes and the key energy figures cited here (8.4× energy margin, ~10.8 s modeled collapse duration vs. 9.21 s free fall).

• https://www.civil.northwestern.edu/people/bazant/PDFs/Papers/466.pdf

FEMA 403 — World Trade Center Building Performance Study: Data Collection, Preliminary Observations, and Recommendations (May 2002). The preliminary FEMA/ASCE assessment that preceded the NIST investigation; source of the early "pancake" hypothesis later superseded by NIST's findings.

• https://www.fema.gov/pdf/library/fema403_execsumm.pdf (executive summary; full report via FEMA's library)

Supporting NIST-authored summary

*Banovic, S. W., Foecke, T., Luecke, W. E., McColskey, J. D., McCowan, C. N., Siewert, T. A., & Gayle, F. W. (2007). "The Role of Metallurgy in the NIST Investigation of the World Trade Center Towers Collapse." JOM (Journal of the Minerals, Metals & Materials Society), 59(11), 22–29.* A NIST-authored summary of the steel recovery and testing program (236 cataloged steel elements), the steel strength–temperature data, and the probable collapse sequences for both towers — including the column damage counts, bowing measurements, and fire-migration timings cited in Chapters 2–5.

• https://www.tms.org/pubs/journals/jom/0711/banovic-0711.html

A note on citation practice

Inline citations in Chapters 0–7 identify the source document and, where the document itself provides one, the section (e.g., NIST NCSTAR 1, §6.14.4) or figure (e.g., NIST NCSTAR 1, Fig. 6-36). Readers are encouraged to verify each claim against the full reports; the NCSTAR series is in the public domain.

This document sets forth the forensic standards, evidence hierarchy, computational modeling principles, and multi-agent peer-auditing workflows used to construct the World Trade Center 3D reconstruction and technical explainer.

The defining standard of this project is epistemic transparency: every rendered element, numerical parameter, and historical claim is explicitly categorized by its level of evidentiary certainty, and what remains unverified or simplified is cataloged with the same prominence as what is established.

1. Evidence Hierarchy

Every physical component in the 3D model, every timeline entry, and every structural mechanism in the text is assigned to one of three evidentiary tiers:

Tier 1: Directly Observed Physical Evidence

Physical artifacts, verified photographic records, and instrumental measurements that exist independently of post-disaster numerical modeling.

• Pre-collapse high-resolution photography & video: Photographic records from dozens of vantage points establishing entry/exit gash geometry (NIST NCSTAR 1-2), visible flame and smoke migration across floor windows (NCSTAR 1-5A), window-by-window exterior column inward bowing measurements (NCSTAR 1-3, Fig. 6-18), and synchronized multi-angle video of collapse initiation (NCSTAR 1-6 §6.1).
• Physical steel recovery and metallurgical analysis: 236 cataloged steel structural elements recovered from Ground Zero, including 90 perimeter panels and 55 core columns stamped with mill marks, chemical assays, yield strength testing, and microstructural analysis of temperature exposure via paint blistering and ferrite/pearlite grain growth (NIST NCSTAR 1-3; Banovic et al., 2007).
• Original architectural and structural contract drawings: Official Port Authority of New York & New Jersey (PANYNJ) contract sets, Leslie E. Robertson Associates (LERA) tenant and alteration records, Pacific Construction (PAC1) Tower A plans, and Foundation drawings R-60 through R-77 detailing the 3,100-foot perimeter slurry wall and bedrock tieback arrays.
• Instrumental records: Lamont-Doherty Earth Observatory seismic recordings of aircraft impacts and collapse ground waves; FAA radar transponder tracking.

Tier 2: Calibrated Engineering Calculations and Forensic Simulations

Validated numerical simulations developed by NIST, FEMA, and academic investigators, explicitly calibrated against Tier 1 physical evidence.

• Impact dynamics (LS-DYNA): Microsecond-step finite-element simulations modeling aircraft fragmentation, exterior panel severance, floor truss shearing, and fireproofing dislodgement across impacted stories (NIST NCSTAR 1-2).
• Fire propagation (NIST FDS): Computational fluid dynamics (CFD) modeling of combustible fuel loads, ventilation-limited fire spread, and upper-layer compartment gas temperatures exceeding 1,000 °C (NIST NCSTAR 1-5).
• Thermal-structural response (ANSYS): Multi-story subsystem finite-element analyses of steel heat transfer, catenary floor sag (up to 42 inches in core-to-perimeter bays), inward pull forces on perimeter columns exceeding 20 kips per connection, and thermal creep buckling of core and perimeter columns (NIST NCSTAR 1-6).
• Progressive collapse limit states: Academic conservation of momentum and energy analyses (Bažant & Zhou, 2002; Bažant & Verdure, 2007) evaluating kinetic energy versus plastic energy dissipation capacity during progressive downward failure.

Tier 3: Geometric, Interpolative, and Illustrative Representations

Visual modeling decisions made for interactive 3D WebGL rendering, clearly identified so they are not mistaken for historical surveying.

• Representative member schedules: Trusses outside the primary impact zones repeat standardized architectural panel modules (NIST NCSTAR 1-2A Appendix G typologies) rather than unique tenant configurations.
• Bounded initiation sequence: The animated collapse sequence halts at a calibrated 2° inclination. The model demonstrates the mechanism that triggered global instability; it intentionally does not simulate chaotic post-collapse rubble pulverization.
• Display cutaways and annotations: Color-coded stress paths (gold forces, cyan ties, red damage contours) and transparent x-ray layers designed to clarify spatial relationships for educational inspection.

2. Primary Source Datums and Geometry Verification

Floor Elevations and Story Heights

Rather than assuming uniform 12-foot story heights, the model incorporates all 220 individual story heights transcribed directly from LERA source schedules (`floor_heights.txt`). Story spacing accounts for:

• 11-foot-4-inch standard tenant office stories.
• Two-story mechanical equipment rooms (Floors 7/8, 41/42, 75/76, 108/109) with heavy perimeter double-spandrel girders.
• 40-foot grand lobby levels and concourse connections.
• Top-of-steel roof and parapet datums verified against PANYNJ elevation benchmarks (EL 1368′0″ North, EL 1362′0″ South).

Substructure and Slurry Wall ("The Bathtub")

The subterranean enclosure is modeled directly from foundation contract sheets R-60 through R-77:

• Perimeter Slurry Wall: 3,100 linear feet of 3-foot-thick reinforced concrete wall descending 65 to 80 feet to solid schist bedrock.
• Tieback Array: 1,548 illustrative multi-tier rock tendons representing the temporary drill anchors installed at 10-foot nominal spacing through Hudson River silt into bedrock sockets prior to floor slab installation.
• Sublevel Datums: Service level B1 (EL 294′) through lower pump room B6 (EL 242′), including PATH railway track tunnels and platform elevations from drawing R-65.

3. Forensic Case Studies in Reconciling Contradictions

Case Study A: The North Tower Antenna and Core Initiation Myth

A persistent claim in secondary literature asserts that the North Tower's 360-foot telecommunications antenna began dropping before the exterior walls, which some interpreted as proof that the building's central core was severed and dropped independently.

The Forensic Record: NIST NCSTAR 1-6 §6.1 conducted rigorous photogrammetric triangulation of collapse initiation across five independent camera angles. The investigation proved that:

1. In cameras viewing the tower from the south-southwest, optical line-of-sight perspective caused the antenna to appear to drop relative to the northern roofline.
2. The building was tilting approximately 8° toward the south as collapse initiated. As the rigid top block rotated southward toward the southern camera, the antenna tip moved downward and toward the camera before the receding northern parapet line.
3. Orthogonal views from the west and east confirmed that the antenna and the roofline moved simultaneously within optical measurement uncertainty (±0.1 s). The antenna was structurally mounted directly on the massive four-story hat truss (Floors 107–110), which cross-braced core columns 501–808 to the perimeter frame. The core could not drop independently of the perimeter without shearing the entire hat truss, an event disproven by recovered hat truss components.

Case Study B: The Superseded "Pancake Theory"

FEMA's initial May 2002 preliminary assessment (FEMA 403) proposed that floor trusses sheared their perimeter seats and fell flat onto underlying floors in a cascading "pancake" sequence, leaving the hollow perimeter tube temporarily intact.

The Forensic Record: NIST's comprehensive 2005 investigation explicitly rejected the pancake hypothesis based on physical evidence:

1. If floors had sheared cleanly at their seats, they could exert no inward horizontal pull on the perimeter columns.
2. High-resolution photographic analysis documented extensive inward bowing of exterior walls prior to collapse: up to 55 inches along the South face of WTC 1 and 20 inches along the East face of WTC 2.
3. Recovered floor truss seats (e.g. NIST NCSTAR 1-3C) showed horizontal tensile tearing rather than downward vertical shearing, proving the sagging floor slabs acted as catenary cables, pulling the exterior columns inward until they buckled under combined vertical and lateral load.

4. Multi-Agent AI Triangulation and Verification Pipeline

Conceived, directed, and built by @mattwatkajtys and robot friends, this project employs an automated multi-agent architecture across three distinct frontier reasoning engines to ensure maximum fidelity and eliminate human oversights or single-model hallucinations:

``` PRIMARY FORENSIC SOURCES (PANYNJ Contract Drawings · NIST NCSTAR · FEMA 403) │ ┌────────────────────────┼────────────────────────┐ ▼ ▼ ▼ OpenAI GPT-6 Astra Google Gemini 3.8 Moonshot Kimi K3 (Reasoning: Ultra) (Thinking: High) (Thinking: High) │ │ │ 3D Geometric Meshes, Forensic Cross-Audit, Circulation & Elevator Slurry Wall & Sublevels Perspective Geometry, Shaft Datums, Source Procedural Generation SEO & Deployment Build Completeness Checks └────────────────────────┬────────────────────────┘ ▼ AUTOMATED REGRESSION SUITE 422 Geometry & State Assertion Checks Static Package & Cross-Reference Tests ▼ PRODUCTION 3D WEBGL PLATFORM (wtcexplained.com) ```

1. Procedural Geometry Generation (OpenAI `gpt-6-astra`): Executed complex Three.js geometry generation, mathematical coordinate transformations, 1,548 substructure tieback coordinates, and interactive animation state controllers across 77 development threads.
2. Forensic & Source Auditing (Google `Gemini 3.8 Flash (High)`): Cross-checked rendered coordinates against NIST tables and original drawing scans, resolved the antenna line-of-sight kinematics, maintained the formal fidelity assumption register, and structured metadata for open scientific deployment across 10 audit sessions.
3. Elevator & Circulation Verification (Moonshot `k3`): Researched mechanical floor machine rooms, shuttle elevator hoistway terminations, core aperture boundaries, and 3D visual material shading across 6 focused research sessions.
4. Automated Continuous Integration: A custom Python and headless-browser verification test suite executes 422 automated assertions on every build, confirming HTML IDs, local hyperlink resolution, JavaScript module hashes, and geometry consistency.

5. Explicit Limitations and Boundaries

1. Not an Aerodynamic or Hydrodynamic Solver: The browser model renders historical and calculated forensic states; it does not compute real-time structural stress tensors, wind turbulence, or fluid dynamics.
2. Post-Impact Interior Obscurement: While exterior damage is fully mapped from direct photography, interior damage to core columns in central elevator banks is based on NIST's calibrated collision simulations; direct photography of the internal core during the disaster does not exist.
3. Tenant Alterations: The model reflects original design and structural alteration drawings on file with the Port Authority; minor non-structural architectural partition shifts made by individual commercial tenants between 1973 and 2001 are not comprehensively reconstructed.
4. Non-Sensational Educational Mandate: The explainer is designed strictly as an engineering record. All representations prioritize sober structural physics, educational utility, and respect for historical fact.
